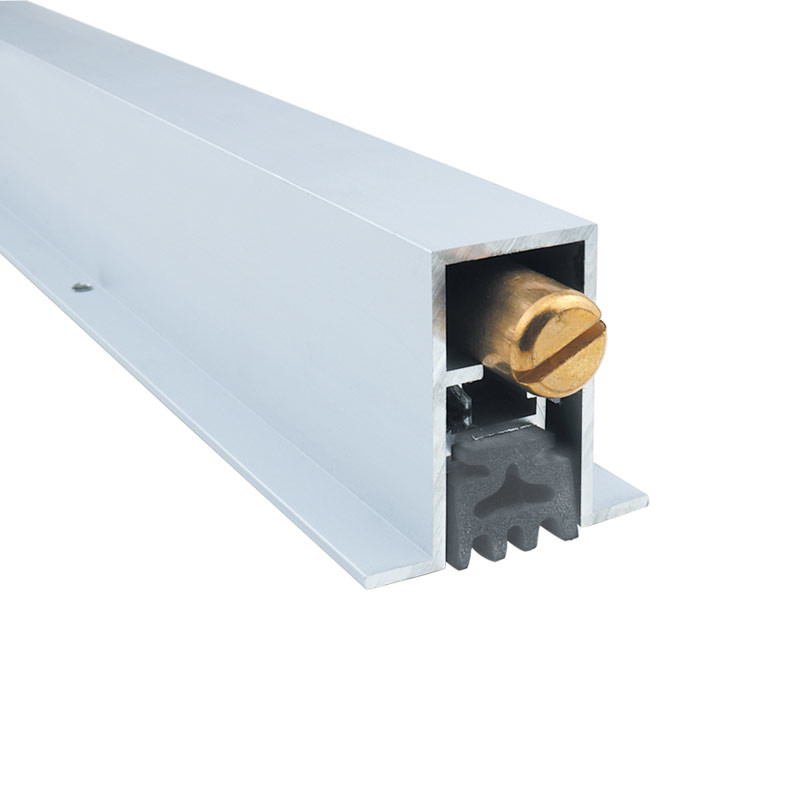

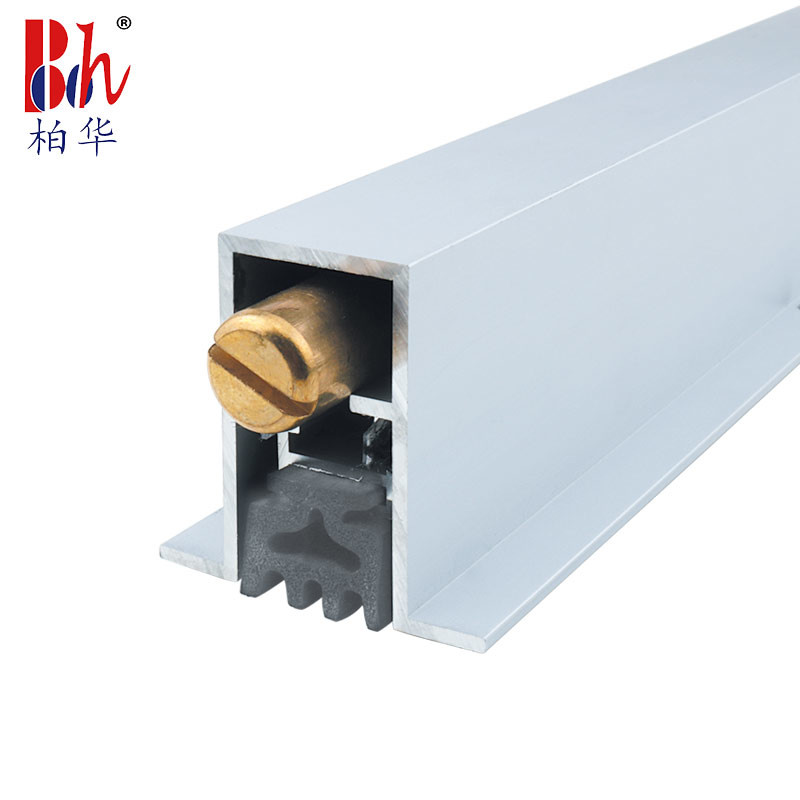

CE Concealed Aluminium Automatic Door Bottom Seals With EPDM Rubber Raven Rp70

Brand Name : BHMFT

Model Number : BH-M015B

Certification : CE

Place of Origin : China

MOQ : Negotiable

Price : EXW price US$ 15/ set

Payment Terms : T/T

Supply Ability : 1000 sets per week

Delivery Time : 7-10 days after receive the payment

Packaging Details : each one packed by a PE bag, about 10 sets in a carton, for length 915mm, carton size: 105*20*10cm

Shell Materials : 6063 Alumium Alloy

Strips Materials : EPDM Rubber

Pluger : Round Copper Bolt

Accessories : Nylon side covers and 201 stainless steel screws

Type : Concealed Type With Side Edge

Size : 25*44mm

Length : can do 300-1500mm

Stock item Length : 800mm, 915mm and 1000mm

Contact Now

Concealed Aluminium Automatic Door Bottom Seals with EPDM Rubber Raven R70 Heavy Duty Acoustic Weatherstrips for Door

Features:

This Automatic door bottom seals is similar as RAVEN RP70, It is made by 2.0mm thickness 6063 aluminium alloy shell, Round copper plunger, EPDM rubber strips, Nylon side cover and stainless steel screws. It has the side edge on the bottom, can screw fix it from the door bottom, suitable for the wooden door and metal door, can fixed by screws from the bottom. This Heavy Duty design makes it more fit the heavier door, can be used for fireproof door. It is ensure an efficient seal with an adjustable plunger that is compressed against the frame as the door is closed, activating a concealed flat spring mechanism, this mechanism drop down the seals smoothly from the housing. The seal compresses on either even or uneven surfaces and retracts automatically when the door is opened.

These kinds of Automatic door bottom seals serve many important functions, including blocking below things:

1, Sound
2, Air
3, Smoke
4, Insects
5, Dust
6, Wind

Specifications:

Item No.: BH-M015B
Min/Max Gap: 3mm to 15mm
Finish: Clear Anodised
Fixing: Concealed Screw Fix
Seal: Silicone Rubber
Fixed Part: Stainless Steel Screws
Size can do: 650-1500mm
Regular length: 800mm, 915mm, 1000mm
Regular length can cut length:

800mm - cancut to 700mm,

915mm - can cut to 800mm,

1000mm - can cut to 900mm.

CE Concealed Aluminium Automatic Door Bottom Seals With EPDM Rubber Raven Rp70CE Concealed Aluminium Automatic Door Bottom Seals With EPDM Rubber Raven Rp70CE Concealed Aluminium Automatic Door Bottom Seals With EPDM Rubber Raven Rp70CE Concealed Aluminium Automatic Door Bottom Seals With EPDM Rubber Raven Rp70
